What is Intelligent Document Processing (IDP) & How You Can Get Started Automating Document Data Extraction

Almost every intelligent document processing writeup you read is written by a vendor selling a pre-built intelligent document processing platform. They define how to use it, and they stop being useful the moment you need customization/optimization or have deep data variance in the documents: a legal cover sheet scanned crooked with a stamp over the case number, an invoice whose line items wrap across two pages, a patient admission record where two physician names sit on one page and only one answers the question you asked. With out of the box IDP you get what you get in terms of accuracy, and it either works for your use case or not.

That gap is where document processing projects fail. Not at the definition, and not at the demo on clean sample documents, but at the point where the pipeline meets a real document mix and the accuracy number quietly drops fifteen points. We build custom document processing systems, and the numbers you see come from real deployed pipelines measured against production client documents rather than benchmark sets.

This guide covers what IDP is, our stack that produces numbers that outperform off the shelf solutions or generic LLMs, the failure mode at each layer, and how to tell before you ship whether your pipeline is good enough.

‍

What Intelligent Document Processing Is, and Where OCR Stops

Intelligent document processing (IDP) is the category name for systems that convert the unstructured data locked inside business documents into structured records downstream systems can use. What it replaces is manual data entry at scale, and the case for automating it is unit economics rather than novelty: manual document processing costs the same per document on the ten-thousandth one as it did on the first, and it introduces human error at a rate proportional to volume. Analysts have tracked IDP as its own market category for years, usually as a line item inside broader digital transformation budgets, though the boundaries blur as it absorbs generative AI and the label drifts toward broader terms like AI document processing. The working definition has stayed stable: documents in, validated structured records out, with artificial intelligence doing the parts rules cannot.

The comparison people search for most is against straight OCR solutions, but OCR is a component of IDP rather than a competitor to it. Optical character recognition converts pixels into characters. It tells you a page contains "Total: $4,812.00" with no opinion about whether that is the invoice total, a line item, or a number in a footer from a different document scanned into the same batch. To extract data rather than text, something has to decide which characters belong to which field, and that decision is the entire discipline.

‍

‍

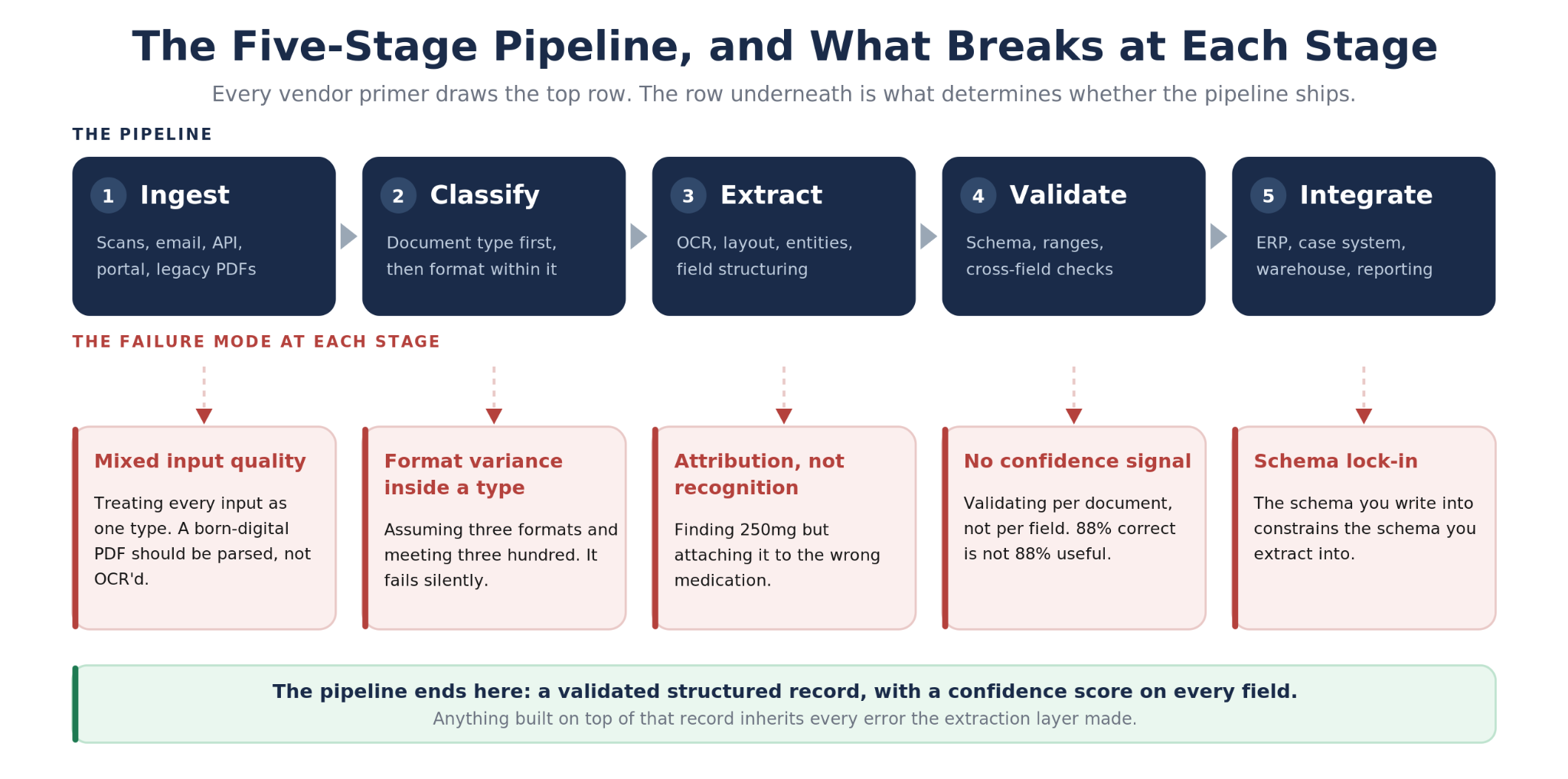

The Pipeline, and What Breaks at Each Stage

Most out of the box vendors describe the same five stages, and they are right about the shape. What they seem to leave out is the failure mode attached to each one, which is the part that determines whether a project ships.

Ingest

Documents arrive by scan, email, API, portal upload, or an integration with a system that stores these as unstructured docs: machine generated PDFs with a clean text layer, scans of printed pages, phone photographs taken at an angle, occasionally a PDF containing an image of a fax of a printout. The failure mode is treating these as one input type. A machine readable PDF should be parsed directly, since running OCR over text that already exists throws away accuracy for nothing. A scan needs image preprocessing first. Systems like our legal document cover sheet pipeline converts PDFs to images and runs a preprocessing module that enhances focus points and applies a training filter forcing the model to generalize harder, specifically because production inputs are off-center, carry scan marks, and include print smudges.

Classify

Before extraction runs, the pipeline has to know what it is holding: document type first, then format within that type. A legal cover sheet and a medical intake form are different types, but two cover sheets from different states are different formats of one type, and extraction rules differ for both. The failure mode is under-modeling format variance. In legal document processing there is no single format to follow; there are hundreds across states and attorney offices, and law firms frequently use their own cover sheets that look nothing like the state or federal versions.

We classify documents in many systems to provide document type specific logic to an input document to improve accuracy. This is usually focused on the most common layouts in an evaluation set, while the rest of the input docs are passed through our standard system.

Extract

This is where most of the accuracy is won or lost. Real production data extraction pipelines cover OCR, layout understanding, entity recognition, and the structuring step that turns recognized text into named fields. The failure mode is treating documents as flat text with no understanding of domain specific layouts. Meaning lives in position as much as in wording: two physician names on one page are different answers depending on which field each sits in, and a number in a table cell means something different from the same number in a header. Strip a document to a string and that information is gone before extraction begins, which is why layout understanding is a stack layer rather than a preprocessing detail.

Validate

Extracted fields get checked before they are trusted: schema conformance, type and format checks, range plausibility, cross-field consistency, and a confidence score per field deciding whether a record flows through automatically or needs a person. The failure mode is validating at the document level instead of the field level. A record that is 88% correct is not 88% useful. It is one wrong ICD code or case number away from a downstream error nobody catches. Confidence attaches per field so the routing decision can be made per field.

Integrate

Structured records get written into an ERP, case management system, claims platform, or whatever data management layer feeds reporting. Usually trivial, with one exception worth designing around early: the schema you write into constrains the schema you extract into, and discovering that after the extraction models are trained is an expensive reversal.

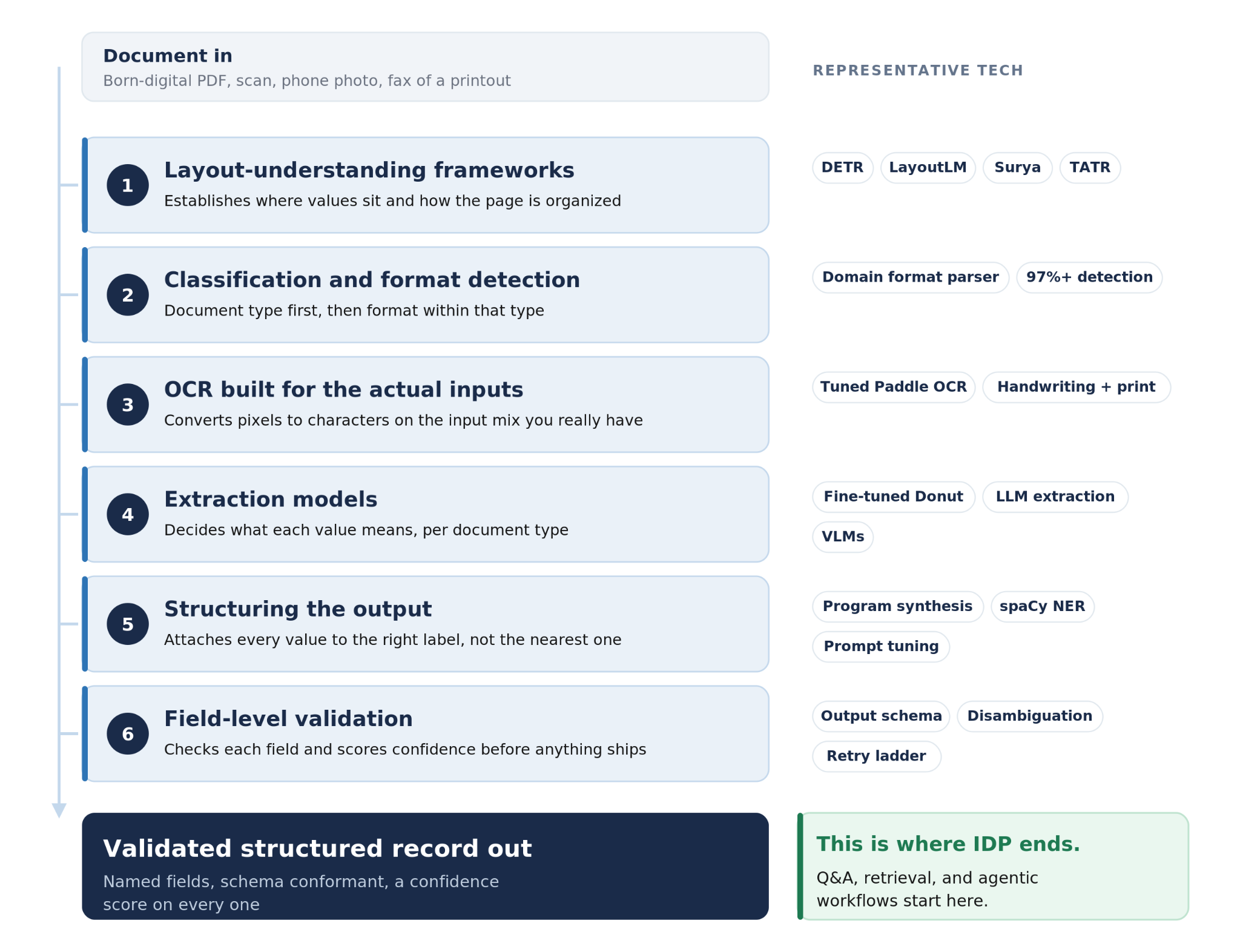

The Stack, Layer by Layer

What follows walks through the stack in the order a document usually moves through one of our custom systems, from the frameworks that understand document structure down to the models and validation that produce output fields. The examples shown throughout are from systems we already have in production.

‍

1. Layout-Understanding Frameworks

‍

Understanding the document layout comes first because everything downstream depends on it. Before a model can decide what a value means, something has to establish where the values are and how the page is organized. This layer uses custom purpose-built computer vision frameworks rather than general purpose standalone models: LayoutLM and its successors, Surya, Table Transformer (TATR), Donut, and DETR-based detection architectures.

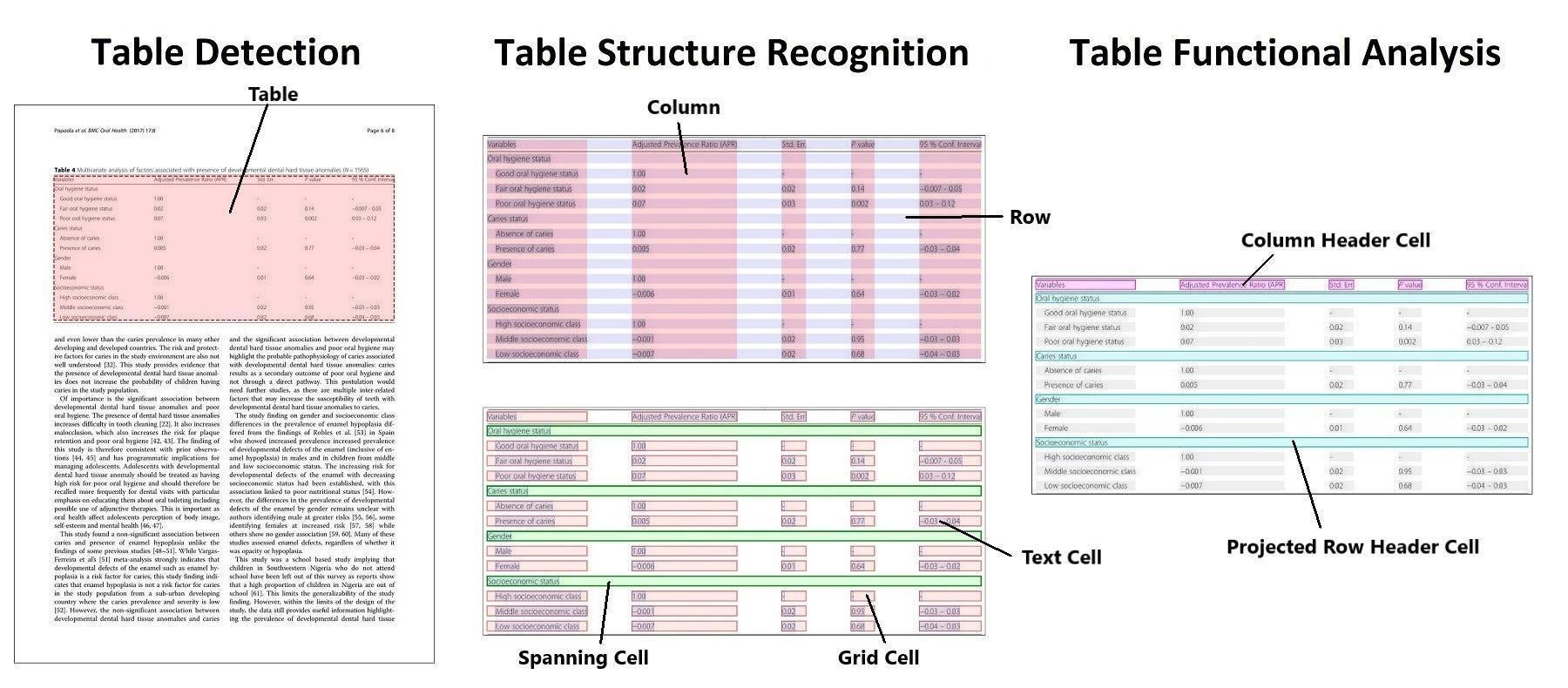

The work usually splits into three stages before extraction steps see a page: table detection finds each table, structure recognition maps its rows and columns, and functional analysis works out which cells are headers and which carry values. Skip any of the three and you get a grid of text with no idea which number belongs to which label.

This layer is also where fine-tuning pays off most. We fine-tuned a DETR document transformer for legal cover sheets across all federal and state-specific formats, because layout variance was the actual problem rather than text recognition. For invoices we restructured Donut, the Document Understanding Transformer, to organize data variance in column-to-line-item relationships, which is what generic invoice parsers get wrong when a line item wraps or a column shifts.

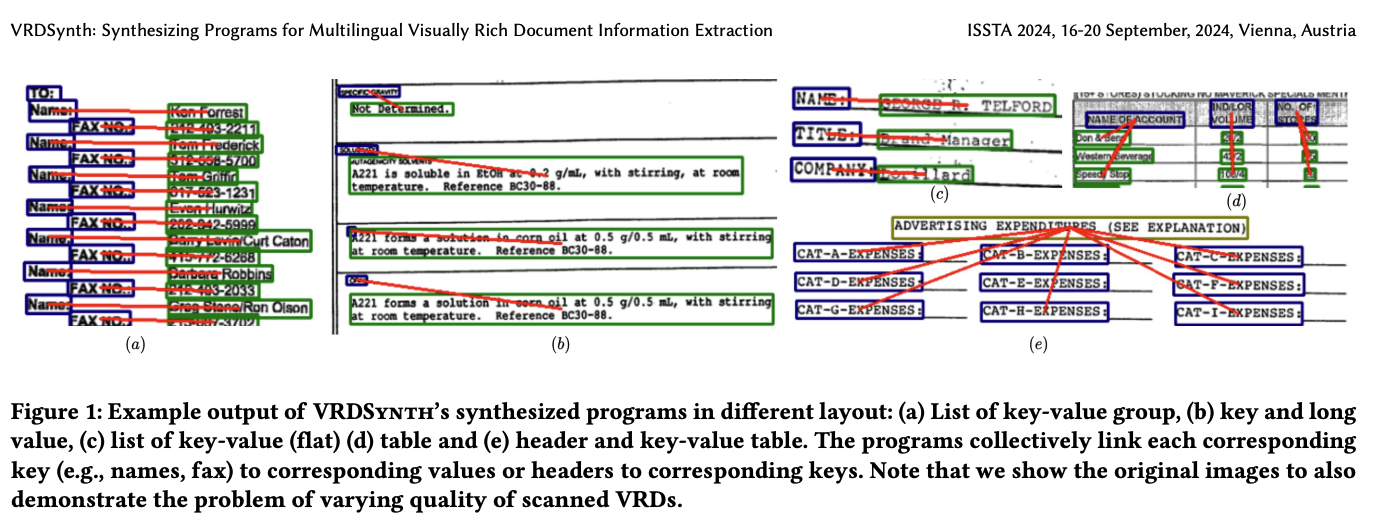

We use our custom program synthesis system that learns key-to-value attribution rules through a trained relationship on the most common document types: how far a value tends to sit from its label, how entities map into boxes and tables, even character-size relationships, trained across layouts with LayoutLMv3.

The practical effect is that a dosage attaches to the right medication rather than the nearest string, a total_cost field links to the right line items, and a name attaches to the right role on a cover sheet. The approach builds on published research, including work on hierarchical relationship extraction and a paper from one of our own engineers on information extraction from visually rich documents.

Worth stating plainly, because it causes real architectural mistakes: layout understanding frameworks and OCR are not substitutes for each other. A layout model tells you a region is a table cell in the third column under a header reading Quantity. OCR tells you that region contains the characters “12”. You need both, in that order, because the region's role changes how you read its contents. Teams that skip the layout layer and feed raw OCR output to a language model are asking the model to reconstruct page geometry from a flattened string, which is why those pipelines degrade sharply on multi-column layouts and tables.

2. Document Classification and Format Detection

Once layout is understood, the pipeline classifies what it is looking at. In simple deployments that is a document-type classifier. Where format variance is real it is a two-level problem: type then format, because custom extraction rules can be attached to the specific format for higher accuracy.

Our legal document processing system runs a domain-specific parsing model trained on hundreds of formats. It recognizes and extracts the format from the cover sheet so downstream models receive clean, format-aware chunks, holding 97%+ accuracy on format detection with the backup general pipeline for formats it does not recognize. The backup path matters as much as the accuracy number, since a format detector without a fallback turns every unseen format into a silent failure. This layer also preserves text structure through extraction so entity relationships survive: a court name near a court address is a relationship that only exists if the pipeline keeps them near each other.

3. OCR Built for the Actual Inputs

OCR exists to digitize text from paper documents into machine-readable characters, and it is the layer teams most often treat as solved and most often get wrong, because general-purpose options are each strong in one direction. Building for legal documents, we found the common Python options are good at machine print or reasonable at handwriting, and weak at both on one page, which is exactly what a hand-filled form demands.

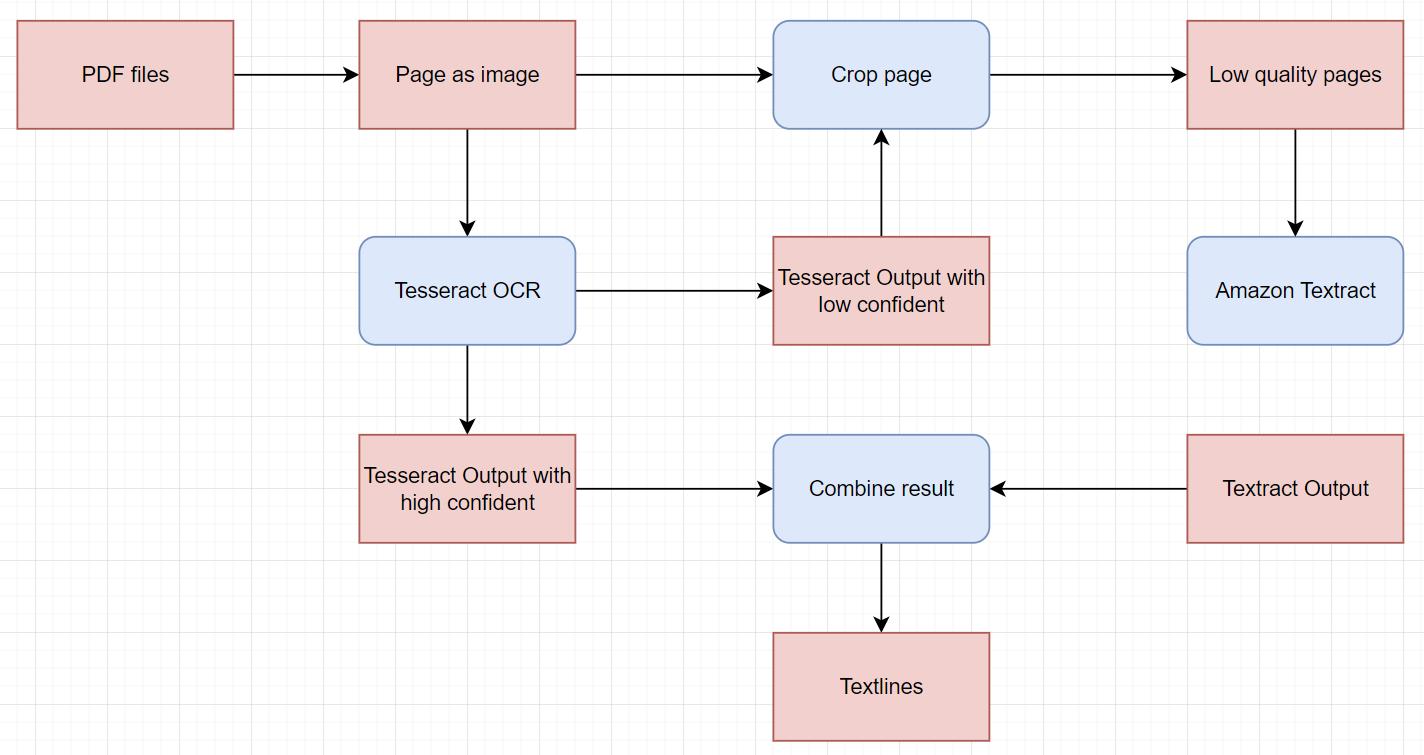

So OCR usually needs tuning to the input mix rather than adoption off the shelf. For the legal pipeline we built OCR for documents carrying both handwritten and machine-generated text, GPU-optimized with parallel processing, after rewriting an industry-standard model with exponential runtime behavior on large batches. A custom text-processing module then cleans the output for the natural language processing (NLP) step that follows, since raw OCR artifacts quietly poison downstream entity recognition.

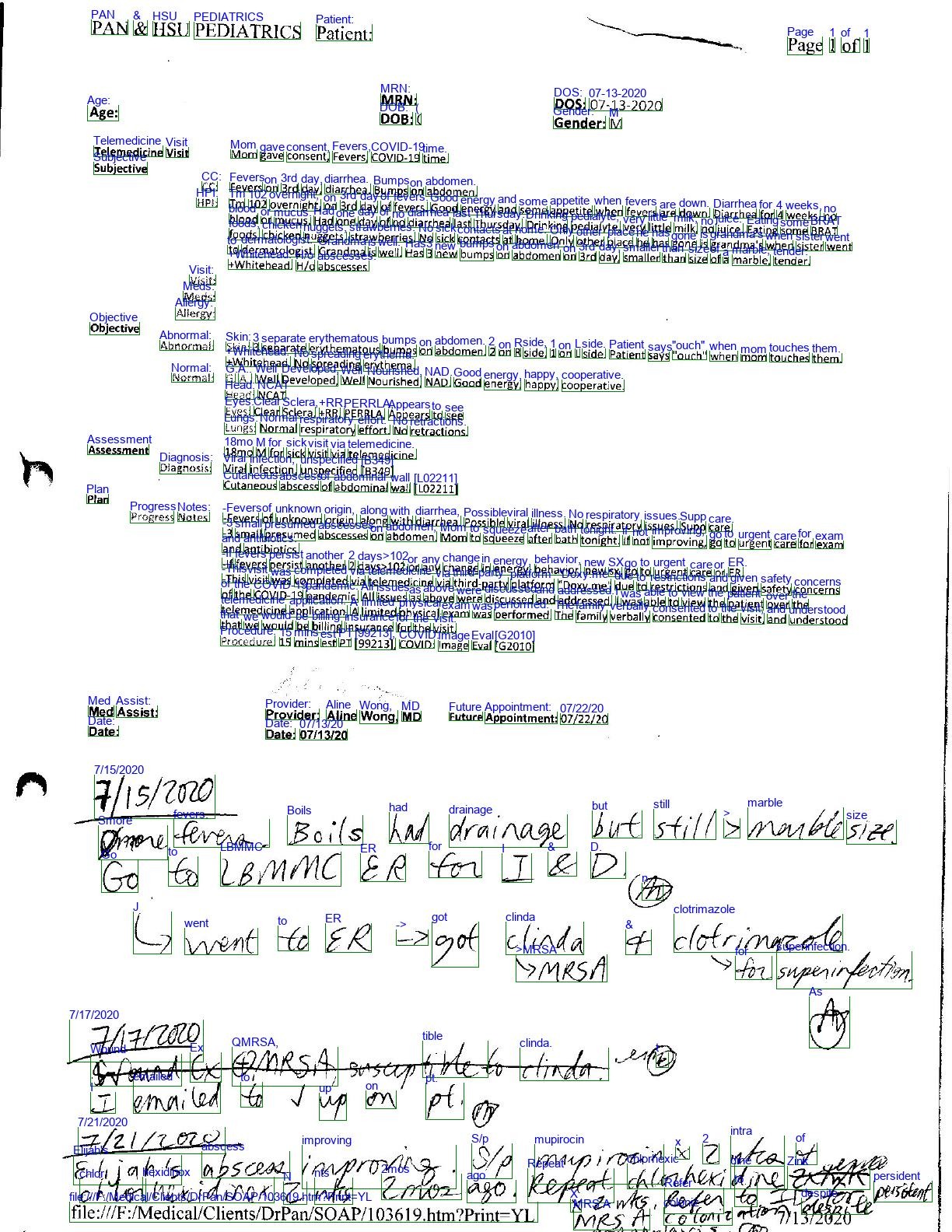

Legal and medical documents share a specific difficulty: stamps, seals, checkboxes, and text scanned on top of other text, which can cover what you need. Sometimes the stamp is what you need, as when a case number is stamped rather than typed. An OCR layer that cannot separate overlay from content misses the field or reads the wrong one, and no downstream model quality recovers from that.

4. Extraction Models

With structure recovered and text extracted, the extraction models decide what values mean. The choice is between fine-tuned deep learning architectures built for documents and general-purpose LLMs. It depends on the document mix, but fine-tuned domain specific models win more often than off the shelf providers will show, delivering higher accuracy on domain tasks at lower inference cost.

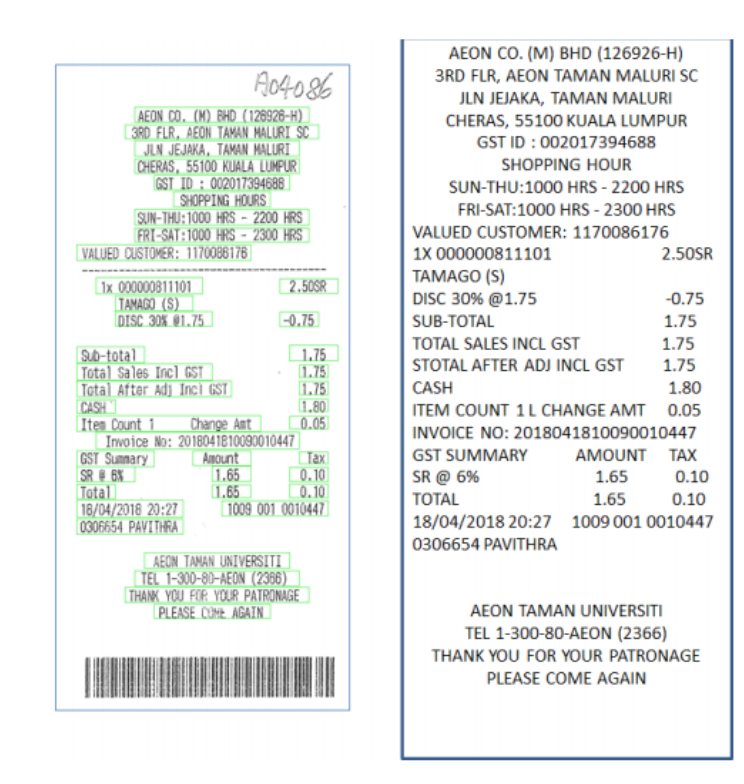

The invoice system built on a custom restructured Donut architecture plus a tuned Paddle OCR configuration reached 95.6% and outperformed off-the-shelf LLMs at the time. The resume parser, in a domain with no templates and severe format variance, reached 94% across all fields and formats, 98% on the most common one and two column layouts, and 99%+ on the most used fields like phone, email, and skills, running in 1.7 seconds on four CPU cores. It outperformed ChatGPT on the same task, and not because it is bigger. It was trained on the specific problem and runs on CPU rather than a GPU cluster, which changes the unit economics of processing documents at a million-a-year volume.

Fine-tuned open-source LLMs belong in this layer too, particularly where the task is judgment rather than field location. A privately instanced content-moderation agent we built for an education-technology platform runs on a fine-tuned Qwen 2.5 and reached 100% on the moderation filter in blind evaluations with a sub-1% hallucination rate, via end-to-end fine-tuning with synthetic data generation and reinforcement learning.

4b. Where General-Purpose LLMs Fit

The honest position on LLMs in extraction is that they are excellent at some parts of this job and poorly matched to others, and the distinction is worth being precise about because it drives cost.

LLMs are strong where the task requires reading comprehension rather than field location: interpreting a clause, normalizing an inconsistently worded value, deciding whether a document says what a rule requires it to say. They handle novel document types with no training data, which is genuinely valuable early in a project when you have forty examples and no labeled set. They produce structured output reliably enough now that schema-constrained generation is a reasonable extraction path for low-volume, high-variance documents.

They are weaker where the task is precise field location on a known document type at volume. A fine-tuned domain specific model trained on your actual layouts will usually beat a general model on the fields you care about, at a fraction of the inference cost, and the accuracy gap widens as document quality degrades. Vision-language models close some of that gap by reading the page as an image, which helps on layout-heavy documents, but they carry the same cost profile as any large model at scale.

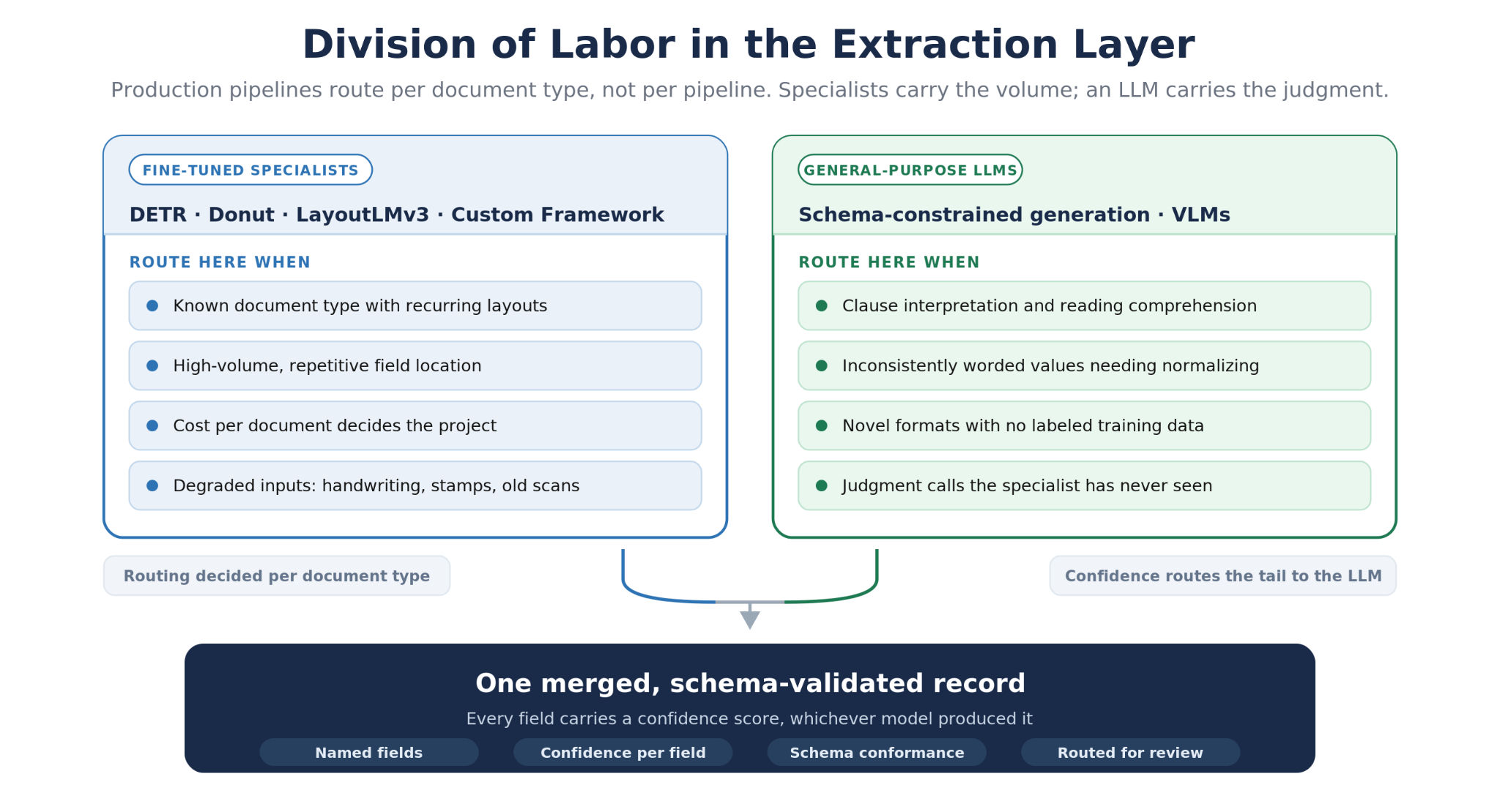

The practical answer in most production pipelines is neither pure approach but a division of labor: layout models and fine-tuned extractors handle the structured, repetitive tasks at high volume, and an LLM handles the interpretive work and the long tail of documents the specialist has not seen. The routing decision is made per document type, not per pipeline.

4c. How the Stack Changes as Models Improve

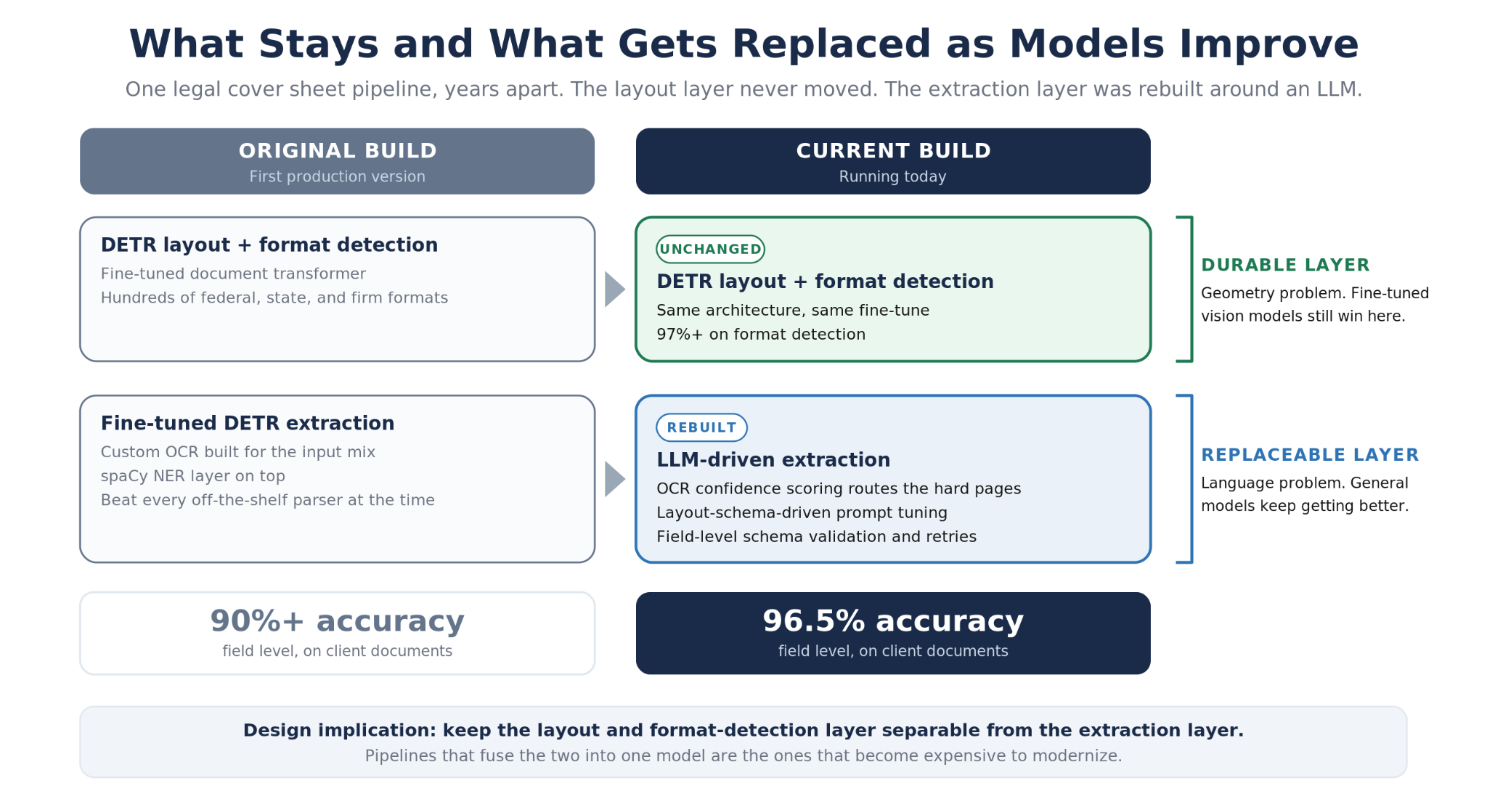

The stack described here is not static, and a system we have run in production for years shows how it moves. The legal cover sheet pipeline was originally built around a fine-tuned DETR document transformer doing both layout detection and extraction, with custom OCR and a spaCy-based NER layer on top. It reached 90%+ accuracy in production, which was well beyond what off-the-shelf parsers managed on those documents.

As language models got better at structured extraction, we rebuilt the extraction half around an LLM-driven pipeline with OCR confidence scoring, and kept the DETR architecture for the layout and format detection role it was already best at. That combination is what reports 96.5% today. The lesson generalizes: the layout layer is durable and the extraction layer is not. Layout understanding is a geometry problem that fine-tuned vision architectures solve well and that general models have not displaced. Extraction is a language problem, and language models keep improving at it.

If you are architecting a pipeline now, that suggests a specific design choice: keep the layout and format-detection layer separable from the extraction layer, so you can replace the second without rebuilding the first. Pipelines that fuse the two into one model are the ones that become expensive to modernize.

5. Structuring the Output

A system recognizing that a page contains 250mg is not extraction. Extraction is knowing 250mg is the dosage of the third medication in the list, not the second. That attribution problem is where a large share of real-world accuracy is won.

Alongside the above mentioned program synthesis, domain-specific NLP handles named entity extraction. Our legal pipeline uses a spaCy base with domain-specific part-of-speech components and a domain-trained NER model, which matters because one legal document mixes long-form sentences with form-like keyword-heavy fields, and a general-purpose entity model handles one of those well.

Our third technique gets almost no coverage and does a lot of work: layout-schema-driven prompt tuning. Where an LLM performs part of the extraction, its rules adjust dynamically based on what the layout model recognized. A table on a page classified as a specific type gets rules for that page type. A recognized total_cost field alongside rows and columns gets rules for tying them together in the final output. And a page the layout model knows holds no relevant data for the fields being extracted gets a different ruleset or is skipped entirely rather than asked to produce data that is not there, which is among the quieter ways hallucination stays out of extraction output.

6. Field-Level Validation

Validation here means checking extracted fields, and it belongs to extraction rather than a stage bolted on afterward. Fields are validated against a structured output schema with type and format checks, and failures trigger automatic rebuild retries rather than passing a malformed value downstream. A malformed ICD code or impossible date gets caught at the field level, the only place it is cheap to catch.

The step almost nobody writes about is false-positive reduction. Extraction models produce confident wrong answers in predictable, resolvable situations. On legal documents we run a disambiguation algorithm using confidence intervals, beam search keyword mapping, and surrounding context to resolve cases like the same name appearing as both plaintiff and attorney, or a case number in a text box disagreeing with one in the header. Both are common, and neither is solvable by the extraction model alone, because from its point of view both candidates look correct.

This is also where the human-in-the-loop decision gets made. Confidence thresholds route records: above the threshold flows through, below it queues for review, and corrections feed back into training. Setting that threshold is an economic decision, not a technical one, and it depends on what a wrong field costs downstream.

Where Document Processing Ships, and What Each Domain Demands

The out of the box vendors list the same use cases. Each one is an attempt to extract valuable information from a different kind of document, and what those lists skip is what each domain demands of the pipeline, which is the part that determines architecture.

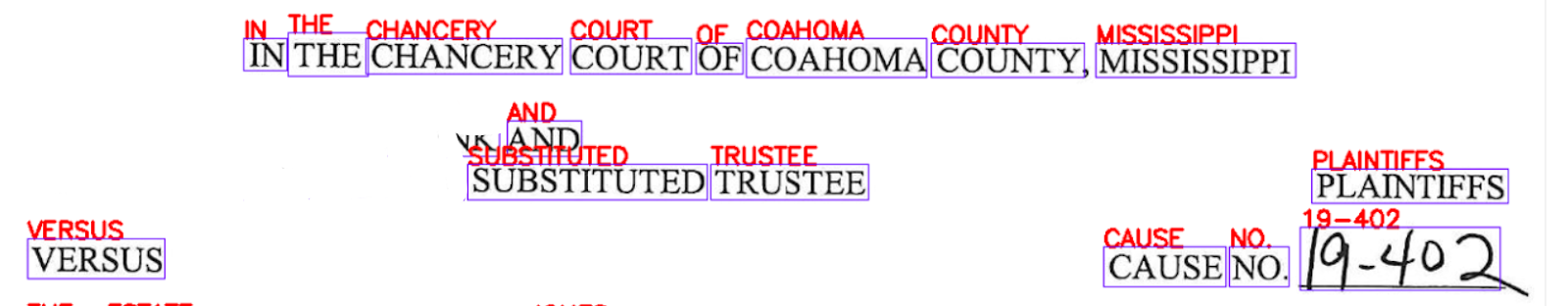

• Legal. Cover sheets, filings, contracts, discovery. Demands format tolerance above all: hundreds of state, federal, and firm layouts, plus handwriting, stamps, and checkboxes on one page. Accuracy claims have to survive adversarial review.
• Accounts payable and finance. Invoices, purchase orders, receipts, statements. Demands relational extraction rather than flat fields, since a line item is meaningless without its column context and totals must reconcile against their parts.

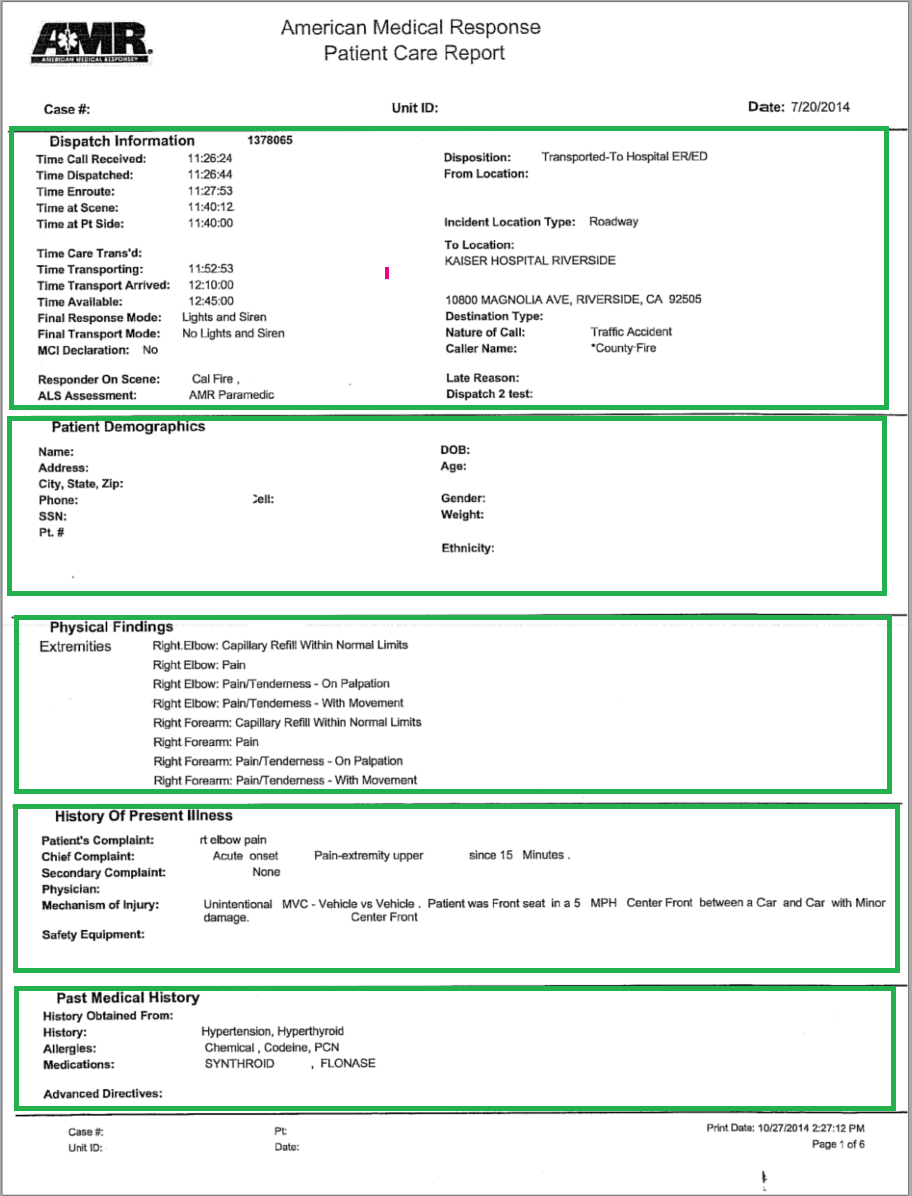

• Clinical records. Extracting data from patient records, intake forms, discharge summaries, and scanned charts. Demands the highest accuracy floor of any domain we work in, plus deployment flexibility, since the data frequently cannot leave the client's infrastructure.

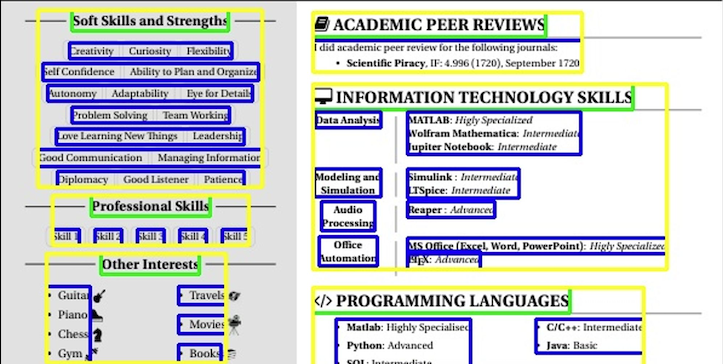

• HR and recruiting. Resumes and employment documents. Demands tolerance for extreme format variance with no templates at all, and throughput economics, since volume is high and value per document is low.
• Ecommerce and marketplaces. Supplier catalogs, spec sheets, product documentation arriving as PDFs. Demands throughput at scale and tolerance for sparse, inconsistent source data.

The pattern across all of them: architecture stays broadly the same while fine-tuning, validation rules, and deployment mode change per domain. That is what lets one architecture serve legal and medical clients without a rebuild, and it is worth designing for from the start.

Portability between domains is a design property rather than a happy accident. A pipeline built with the training modules separable from the orchestration can be moved to a new domain with similar input characteristics by retraining the models that touch domain-specific content and leaving the rest alone. Where a new domain needs more than that, individual models can be adjusted and plugged back into the existing pipeline. The alternative, a pipeline where domain assumptions are distributed through every stage, means the second client costs nearly as much to serve as the first.

How to Know It Works Before You Ship

This section is missing from every vendor primer and it decides whether a project succeeds. Demo accuracy is measured on documents chosen for the demo. Your accuracy is measured on your documents, and the gap is often large.

Build the evaluation set before the pipeline

Build a held-out evaluation set from your real document mix, layouts and scan quality and all, with human-verified ground truth per field. Do this earlier than feels reasonable. Every week the benchmark does not exist is a week the pipeline improves against intuition instead of measurement, and intuition is not a defensible basis for a production claim. The medical record system we built was measured this way, on a held-out set from the client's actual document mix rather than clean samples, which is what made its 96%+ figure on the top 10 fields and 90%+ across every field provable rather than asserted.

Measure per field, and track straight-through processing separately

Aggregate accuracy hides the failures that matter. A pipeline at 94% overall might be at 99% on dates and 71% on the one field driving a downstream decision, so track per field and set thresholds per field based on downstream cost. Then track straight-through processing rate separately, because it is the number the business actually cares about: the percentage of documents requiring no human touch. The two diverge, since a pipeline can be accurate and still route most documents to review when thresholds are conservative.

Use domain experts for judgment-based outputs

Where the correct answer is not deterministic, domain experts have to evaluate it. On work built atop our medical extraction pipeline, outputs were reviewed by professionals who already knew the exact patient histories, so they judged against real outcomes rather than text. That is the only way to earn a defensible claim on subjective questions.

Make the accuracy floor a shipping gate

Decide the floor before you build and ship nothing downstream until extraction holds it. Where that floor sits depends on what the document is used for, since important documents feeding a legal filing or a clinical decision carry a different tolerance than a resume screen. Reversing that order is the most common implementation mistake in this space. When a downstream system produces a wrong answer, the postmortem almost always lands in the same place: it reasoned correctly over the wrong extracted material.

When should I use a custom IDP system instead of an off-the-shelf platform?

We build custom document processing systems, so the useful thing we can offer is the honest version of when not to. What I’ve found from working with 100s of customers on these use cases is that off the shelf struggles with customization, fine-tuning, and use case specific adjustments. If an off the shelf solution is accurate for your use case, use it! We implement these all the time instead of going with fully custom.

Off-the-shelf is the right call when

• Your documents are common types with established formats: standard invoices, receipts, W-2s, passports, licenses. The pre-trained models here are good.
• Your accuracy requirement is real but not extreme, and human review of exceptions is affordable.
• Managed-model data terms work for your data and cloud processing raises no regulatory issue.
• Your document mix is homogeneous and templated, where a template extractor is cheaper and more predictable than anything learned.
• The business process and relevant information you need is very simple.

Custom wins when

• Your documents are specialty types with high format variance and no template: legal filings, clinical records, industry-specific forms.
• You need an accuracy floor provable on your own documents, because downstream systems or regulators depend on it.
• The data cannot leave your infrastructure, which rules out most managed services outright.
• Inputs are degraded in domain-specific ways: handwriting mixed with print, stamps over text, decades-old scans.
• Volume is high enough that inference cost per document matters, where a tuned specialist on CPU beats a large model on GPU.
• Processing large volumes of high variance document types.
• Off-the-shelf was evaluated on your documents and missed the floor. Worth testing first, and it is a cheap test.

The test that resolves most of these: take 200 representative documents, run them through two or three of the leading intelligent document processing solutions, measure per-field accuracy against ground truth. Clears your floor, use it. Lands ten or fifteen points short on the fields that matter, and that gap is what a custom pipeline is for, with the number that justifies the build already in hand.

For context on the second path: generic medical NLP services and generic OCR software paired with a strong LLM could not reach a demonstrable floor on the real layouts and scans in our clinical work, and managed document services struggled substantially with complex layouts. Fine-tuning on the actual document mix is what made 96%+ reachable, and the evaluation set is what made it provable.

What Gets Built on Top

Everything above stops at the same place: a validated structured record leaving the pipeline. That record is the foundation for a category of systems frequently confused with document processing but architecturally separate, and worth naming so the boundary is clear.

Question answering over document sets, systems that analyze data across thousands of extracted records, agentic workflows that plan multi-step work over extracted data, and generation systems that assemble documents from structured inputs all consume IDP output. They bring their own machinery: retrieval architecture, orchestration, answer validation, citation provenance. That is a different problem with different failure modes, and treating it as part of document processing is how teams end up debugging a retrieval issue by retraining an extraction model.

The dependency runs one direction and it is strict. Those systems inherit every error the extraction layer makes. A system that reasons perfectly over a wrong field produces a confident wrong answer, and the postmortem traces to extraction every time. Which is the argument for getting this layer right, and measuring it, before anything is built on top of it.

Robotic process automation deserves separating out, because the two categories get shopped together. RPA and the broader intelligent automation stacks around it automate business processes by driving software the way a person would, moving records between systems and filling screens. They need structured input to act on, which makes them a consumer of document processing output rather than a substitute for it. An RPA bot handed a scanned PDF has nothing to work with. Handed a validated record, it has everything, which is why the two are frequently deployed as one automated workflow and frequently mistaken for one product.

The Short Version

Intelligent document processing is not one model, and the comparison that matters is not which platform has the best extraction. It is whether the pipeline recovers structure before it reads text, knows which format it is holding, runs OCR built for the inputs you actually have, learns attribution rather than guessing it, and attaches a confidence score to every field so routing decides itself.

Off-the-shelf platforms handle standard document types at typical accuracy floors, and there is no prize for building what you can buy. Custom pipelines earn their cost on specialty documents, provable accuracy floors, degraded inputs, and data that cannot leave your infrastructure. The way to tell which you are in is to measure on your own documents before committing.

If you are evaluating a document processing build and want a second opinion on which path fits your documents, tell us what you are working with. We scope these builds regularly and will say plainly when an off-the-shelf platform is the better answer.

Not sure whether your documents need a custom pipeline?

Send us a representative sample of your document mix and the fields you need extracted. We will tell you whether an off-the-shelf platform clears your accuracy floor, and what a custom build would change if it does not. Let's chat on a scoping call.

‍

Frequently Asked Questions

What is the difference between OCR and intelligent document processing?

OCR converts images of text into characters. IDP determines what those characters mean: which value belongs to which field, on which page, and whether it is plausible enough to use. OCR is a component inside an IDP pipeline, not an alternative. A pipeline with perfect OCR and no layout understanding still cannot tell you which of two names on a page is the referring physician.

How does intelligent document processing work?

Automated document processing runs in five stages. Ingest normalizes whatever arrives, since a born-digital PDF and a phone photograph of a form need different handling. Classification identifies document type and then format within that type. Extraction recovers layout, runs OCR, and locates the key data fields on the page. Validation checks each field against a schema and assigns it a confidence score. Integration writes the validated record into the system that needed it, where automated data processing downstream can finally run against clean fields. Every stage leans on a different artificial intelligence model rather than one general system, and each has its own failure mode, so a pipeline is only as accurate as its weakest stage.

How accurate is intelligent document processing?

It depends on document quality, format variance, and how narrowly the pipeline is tuned, so treat any single number with suspicion. For calibration, systems we run in production report 96.5% on legal cover sheets, 95.6% on invoice line items, 94% across every field on resumes with 99%+ on the most common ones, and 96%+ on the top 10 fields of a clinical record extractor. Each figure was measured on client documents with human-verified ground truth per field rather than on vendor sample sets, which is the only kind of accuracy number worth acting on.

How much does intelligent document processing cost?

Managed IDP software prices per page, making cost predictable and linear with volume. Custom pipelines carry a build cost and a much lower marginal cost per document, and the crossover depends on volume and how much inference the pipeline needs. A tuned specialist running on CPU costs materially less per document than a large model on GPU, and at large volumes that difference dominates the comparison.

What are the main use cases for intelligent document processing?

The highest-volume applications are accounts payable and invoice processing, legal filings and contracts, clinical record extraction, insurance claims, loan and mortgage documents, KYC onboarding, resume and HR document processing, and supplier catalog intake. What they share is document volume, format variance, and a downstream system that needs structured fields rather than text.

Three Things We Would Do Differently

These are lessons from builds that shipped, which makes them more useful than principles.

Build the evaluation set earlier than feels reasonable. It always feels premature, because at that stage there is no pipeline to evaluate, and that is exactly the point: the set defines what good means before anyone is invested in a particular answer. Doing it late means renegotiating the definition of success with a working system already in the room.

Treat the accuracy floor as a non-negotiable gate from day one. Refusing to build downstream functionality on an unproven extraction layer looks slow in the first month and pays for itself the first time a failure traces cleanly to a measured layer instead of becoming a mystery spanning four components.

Invest in per-step configurability sooner than the second client requires it. The seams that later let one architecture serve two industries without a rebuild were retrofit work in our case, and they would have been substantially cheaper as an original design assumption. If there is any chance a second domain is coming, the configuration boundaries are worth drawing while the code is still small.

‍
